| KTM's profilation of this bike |
| This is the measure of all motocross World Championship bikes with a genuine factory engine! There has never before been a bike like this for sale. Feather light and with any amount of power, the KTM 125 SX leaves ample room to correct the line and is always easy to control. With its redesigned chassis setup, new V-Force 3 membrane and a broad range of revolutions, it makes other 125 cc 2-strokes look old. And it’s only KTM that supplies high quality series details like the adjustable CNC-machined triple clamp. |
|
General information |
|
Motorcycle name
|

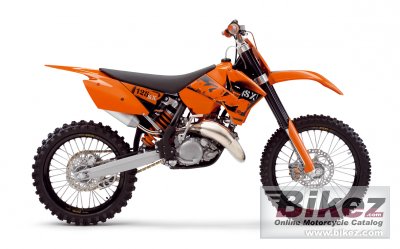

KTM 125 SX |
|
Year of manufacture
|
2006 |
|
Type
|
Cross / motocross |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 39 |
|
Ignition
|
Kokusan digital 2K-1 |
|
Lubrication system
|
Mixture oil lubrication 1:40 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25 CrMo4 |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
92.4 kg (203.7 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
390 mm (15.4 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
