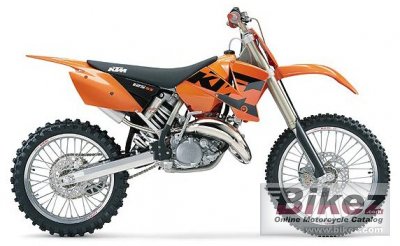

| KTM's profilation of this bike |
| The 125 SX has developed to the motorcycle of its class. With lively engine characteristics and optimal cross-handling this motorcycle is the best of many years in the world championship and winner of the US national Championship. By the use of a V-Force Intake System and a new exhaust the performance is improved significantly.
|
| General information |
|---|
| Model: | KTM 125 SX |
| Year: | 2004 |
| Category: | Cross / motocross |
| Rating: | 73.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 124.80 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromium molybdenum |
| Rake (fork angle): | 24.0° |
| Trail: | 63 mm (2.5 inches) |
| Front suspension: | WP-USD 48/26 MA/PA |
| Rear suspension: | WP-PDS-DA shock absorber |
| Front brakes: | Single disc |
| Front brakes diameter: | 216 mm (8.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 260 mm (10.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 93.6 kg (206.4 pounds) |
| Seat height: | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Alternate seat height: | 675 mm (26.6 inches) If adjustable, highest setting. |
| Ground clearance: | 390 mm (15.4 inches) |
| Wheelbase: | 1,471 mm (57.9 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Other specifications |
|---|
| Color options: | Orange |
