| KTM's profilation of this bike |
| With an even more powerful engine and the further improved running gear, things are hotting up in the E1 class. An extremely low weight and huge amounts of power packed into a perfect orange racing machine. The best choice for everyone who prefers the simple two-stroke technology. |
|
General information |
|
Motorcycle name
|

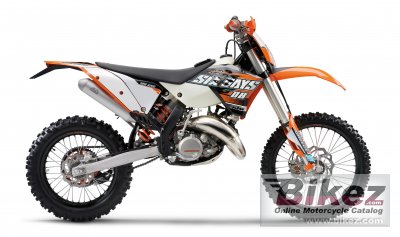

KTM 125 EXC SIXDAYS |
|
Year of manufacture
|
2009 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 36 S AG |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Mixture oil lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminium 125 EXC |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4 |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
97.0 kg (213.8 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
390 mm (15.4 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Kick |
