| KTM's profilation of this bike |
| The 125 EXC is ´ready to race ´ for the world´s largest enduro competition, the ´International Six Days Enduro´. Six days in succession, over a thousand offroad kilometres, 40 hours in the saddle - a gruelling test, not only for the rider. A whole package of high-quality special options makes the 125 EXC fit for this ruthless contest, in which more than half the starters bank on KTM every year. |
|
General information |
|
Model
|

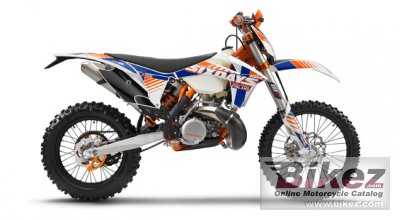

KTM 125 EXC Six Days |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.8 ccm (7.62 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Reed intake and exhaust control |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 36 S AG |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
14:50 (13:50). Primary gear 23:73. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
95.0 kg (209.4 pounds) |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
355 mm (14.0 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/white/blue/black |
|
Starter
|
Kick |
|
Comments
|
Racing tuned version. |
