| KTM's profilation of this bike |

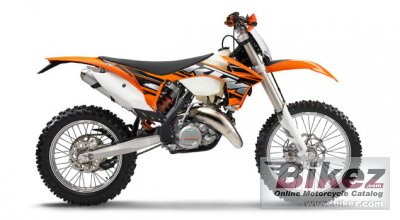

| The KTM 125 EXC 2013 is the ideal bike for youngsters in the E1 class and all those seeking ultra-easy handling, minimum weight and lowest acquisition and maintenance costs. Its renowned high performance sets the benchmark in this class. |
|
General information |
|
Model
|
KTM 125 EXC |
|
Year model
|
2013 |
|
Type
|
Enduro / offroad |
|
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
Reed intake. |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
14:50 (13:50). Primary drive: 23:73. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
95.0 kg (209.4 pounds) |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
355 mm (14.0 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Kick |
| Update specs | Report missing specs or required updates. |
|
