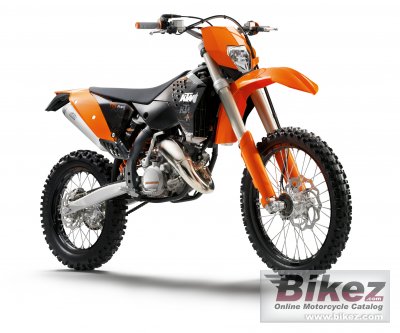

KTM 125 EXC 20092009 KTM 125 EXC specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The best choice for everyone who prefers the simple two-stroke technology. |
| General information | |
|---|---|
| Model name | KTM 125 EXC |
| Model year | 2009 |
| Category | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.8 ccm (7.62 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Keihin PWK 36 S AG |
| Ignition | Kokusan |
| Lubrication system | Mixture oil lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 steel |
| Rake (fork angle) | 27.0° |
| Front suspension | WP USD |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 97.0 kg (213.8 pounds) |
| Seat height | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance | 390 mm (15.4 inches) |
| Wheelbase | 1471 mm (57.9 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 KTM 125 EXC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 KTM 125 EXC discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this KTM bike | |
Reliability for the 2009 KTM 125 EXC:  (71.7 out of 100)Click here for complete rating. |
|
