| KTM's profilation of this bike |
| The advantage of the feather light 125 EXC is that it goes where even mountain goats refuse to climb. Light as a trial bike, it easily tackles the toughest slopes that nature can come up with. The newly coordinated chassis, together with the technology of the factory engine adds up to any amount of riding pleasure. |
|
General information |
|
Motorcycle name
|

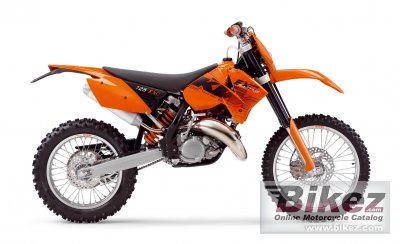

KTM 125 EXC |
|
Year model
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 36 S AG |
|
Ignition
|
Kokusan digital 2K-3 |
|
Lubrication system
|
Mixture oil lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25 CrMo4 |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
98.6 kg (217.4 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
390 mm (15.4 inches) |
|
Wheelbase
|
1471 mm (57.9 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
|
Comments
|
Not avilable in the USA. |
