| KTM's profilation of this bike |

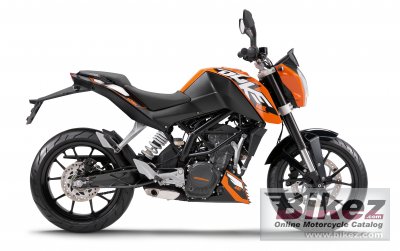

| The first 125cc KTM for the road – for all young people and the young at heart alike. The 125 Duke offers maximum riding fun, thanks to thoroughbred motorcycle technology. The featherweight chassis with high-quality components and first-class brakes guarantees dynamic cornering fun. The refined four-stroke single cylinder with fuel injection and six-gear transmission provides adequate propulsion. |
|
General information |
|
Model name
|
KTM 125 Duke |
|
Year of manufacture
|
2013 |
|
Type
|
Naked bike |
|
Rating
|
3.3 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
14.8 HP (10.8 kW)) |
|
Bore x stroke
|
58.0 x 47.2 mm (2.3 x 1.9 inches) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
|
Lubrication system
|
Forced oil lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
5/8 x 1/4 (520) O Ring. Primary drive: 22:72. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame made from steel tubes, powder-coated |
|
Rake (fork angle)
|
25.0° |
|
Front suspension
|
WP Suspension 4357 |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
WP Suspension 4618 EM |
|
Rear wheel travel
|
150 mm (5.9 inches) |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc. Floating disc. Single-piston caliper. |
|
Diameter
|
230 mm (9.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
125.0 kg (275.6 pounds) |
|
Power/weight ratio
|
0.1180 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Ground clearance
|
170 mm (6.7 inches) |
|
Wheelbase
|
1361 mm (53.6 inches) |
|
Fuel capacity
|
10.50 litres (2.77 US gallons) |
|
Other specifications |
|
Color options
|
Black/grey, black/orange |
|
Starter
|
Electric |
