| KTM's profilation of this bike |
| A strictly limited number of bikes for those who want to use their 1190 RC8 R exclusively on the racetrack. Factory-homologated for Superstock and built to be ´ready to race´ by the KTM Racing Division, with all the goodies from the KTM PowerParts range that make the potential for race success even greater. |
|
General information |
|
Model
|

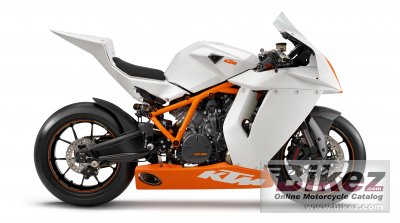

KTM 1190 RC8 R Track |
|
Year
|
2012 |
|
Category
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1195.0 ccm (72.92 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
75° V-twin |
|
Power
|
177.0 HP (129.2 kW)) @ 4000 RPM |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
|
Compression
|
13.5:1 |
|
Bore x stroke
|
105.0 x 69.0 mm (4.1 x 2.7 inches) |
|
Fuel system
|
Injection. Keihin EFI |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Dry-sump lubrication with 3 rotor pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
17:37. Primary drive: 40:76. 5/8 x 1/4” (520) X and #8209;Ring chain. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame made from chrome molybdenum steel, powder-coated |
|
Rake (fork angle)
|
23.3° |
|
Trail
|
97 mm (3.8 inches) |
|
Front suspension
|
WP Suspension Up Side Down 4354 |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
WP Suspension 4618 DACC |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
190/55-17 |
|
Front brakes
|
Double disc. Radially mounted four-piston brake calipers; floating brake discs |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Two piston, fixed caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
173.0 kg (381.4 pounds) |
|
Power/weight ratio
|
1.0231 HP/kg |
|
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1425 mm (56.1 inches) |
|
Fuel capacity
|
16.50 litres (4.36 US gallons) |
|
Other specifications |
|
Color options
|
White/orange |
|
Starter
|
Electric |
