KTM's profilation of this bike |
Only 100 available!
Clubrace kit including Akrapovic Evo4 for 180 hp (132 kW)! |
General information |
---|

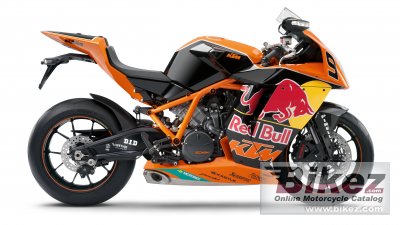

Model | KTM 1190 RC8 R Red Bull Limited Edition |
Year | 2010 |
Category | Sport |
Rating | 3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 1195.0 ccm (72.92 cubic inches) |
Engine type | Twin, four-stroke |
Power | 167.6 HP (122.4 kW)) @ 10250 RPM |
Torque | 123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
Compression | 13.5:1 |
Bore x stroke | 105.0 x 69.0 mm (4.1 x 2.7 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Keihin EFI (throttle body 52 mm) |
Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
Lubrication system | Pressure lubrication with 3 Eaton pumps |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Wet mDouble disk clutch, operated hydraulically |
Chassis, suspension, brakes and wheels |
---|
Frame type | Chromium-Molybdenum trellis frame, powder-coated |
Rake (fork angle) | 23.3° |
Trail | 97 mm (3.8 inches) |
Front suspension | WP-USD 43 mm fork |
Front wheel travel | 120 mm (4.7 inches) |
Rear suspension | WP-Monoshock |
Rear wheel travel | 120 mm (4.7 inches) |
Front tire | 120/70-17 |
Rear tire | 190/55-17 |
Front brakes | Double disc. Brem |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc |
Diameter | 220 mm (8.7 inches) |
Physical measures and capacities |
---|
Dry weight | 182.0 kg (401.2 pounds) |
Power/weight ratio | 0.9210 HP/kg |
Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
Alternate seat height | 825 mm (32.5 inches) If adjustable, highest setting. |
Ground clearance | 110 mm (4.3 inches) |
Wheelbase | 1425 mm (56.1 inches) |
Fuel capacity | 16.50 litres (4.36 US gallons) |
Other specifications |
---|
Color options | Orange/black/red/yellow |
Starter | Electric |
