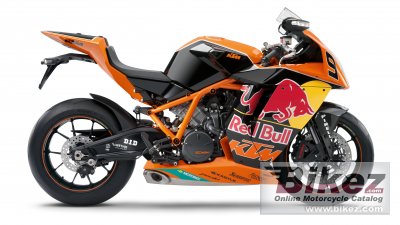

KTM 1190 RC8 R Red Bull 20112011 KTM 1190 RC8 R Red Bull specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The 1190 RC8 R Red Bull Edition bikes come individually numbered with limited edition IDM Red Bull paint and graphics and have all the same features of the 1190 RC8 R plus a closed course club race kit which includes: an Akrapovic Evo4 titanium exhaust system, modified valve timing, a thinner spec cylinder head gasket and. Club Race Kits are for closed course competition only. |
| General information | |
|---|---|
| Model | KTM 1190 RC8 R Red Bull |
| Year model | 2011 |
| Type | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 1195.0 ccm (72.92 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 167.6 HP (122.4 kW)) @ 10250 RPM |
| Torque | 123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
| Compression | 13.5:1 |
| Bore x stroke | 105.0 x 69.0 mm (4.1 x 2.7 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressure lubrication with 3 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Driveline | 17:37. Primary drive: 40:76. |
| Exhaust system | Stainless steel underfloor silencer with regulated catalytic converter |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. |
| Front suspension | WP-USD 43 mm |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | WP-Monoshock |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 120/70-17 |
| Rear tire | 190/55-17 |
| Front brakes | Double disc. Brembo four piston, radially bolted caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Brembo two piston, fixed caliper |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Cast aluminium wheels 3.5 x 17in., 6 x 17in. |
| Physical measures and capacities | |
| Dry weight | 182.0 kg (401.2 pounds) |
| Power/weight ratio | 0.9210 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Ground clearance | 110 mm (4.3 inches) |
| Wheelbase | 1425 mm (56.1 inches) |
| Fuel capacity | 16.50 litres (4.36 US gallons) |
| Other specifications | |
| Color options | Black/orange/red/yellow |
| Starter | Electric |
| Comments | Limited edition model. |
