| KTM's profilation of this bike |
| A strictly limited number of bikes for those who want to use their 1190 RC8 R exclusively on the racetrack. Factory-homologated for Superstock and built to be ´ready to race´ by the KTM Racing Division, with all the goodies from the KTM PowerParts range that make the potential for race success even greater. |
| General information |
|---|

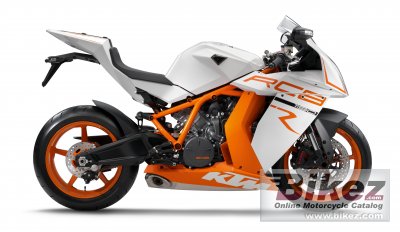

| Model: | KTM 1190 RC8 R Race Specs |
| Year: | 2012 |
| Category: | Sport |
| Rating: | 60.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1195.00 ccm (72.92 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Otto motor, 75° V arrangement |
| Power: | 177.00 HP (129.2 kW)) @ 4000 RPM |
| Torque: | 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
| Compression: | 13.5:1 |
| Bore x stroke: | 105.0 x 69.0 mm (4.1 x 2.7 inches) |
| Fuel system: | Injection. Keihin |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system: | Dry-sump lubrication with 3 rotor pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi-disc clutch / hydraulically operated |
| Driveline: | 17:37. Primary drive: 40:76. 5/8 x 1/4” (520) X and #8209;Ring chain. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Front suspension: | WP Suspension Up Side Down 4354 |
| Front wheel travel: | 120 mm (4.7 inches) |
| Rear suspension: | WP Suspension 4618 DACC |
| Rear wheel travel: | 120 mm (4.7 inches) |
| Front tyre: | 120/70-17 |
| Rear tyre: | 190/55-17 |
| Front brakes: | Double disc. Radially mounted four-piston brake calipers; floating brake discs |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Two piston, fixed caliper |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 173.0 kg (381.4 pounds) |
| Power/weight ratio: | 1.0231 HP/kg |
| Seat height: | 845 mm (33.3 inches) If adjustable, lowest setting. |
| Ground clearance: | 110 mm (4.3 inches) |
| Wheelbase: | 1,425 mm (56.1 inches) |
| Other specifications |
|---|
| Color options: | White/orange |
| Starter: | Electric |
| Comments: | Also is called KTM 1190 RC8 R Track in Europe. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US.
2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 12 KTM 1190 RC8 R Race Specs discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM bike
|
Reliability for the 2012 KTM 1190 RC8 R Race Specs:
 (62.6 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
