| KTM's profilation of this bike |
| Get yourself the best series chassis with the latest, most powerful series V2. Plus, the most sophisticated racing exhaust in the Clubrace Kit: the Akrapovi and #269; Evo4, a masterpiece in ultra-thin titanium. 7.5 kg lighter and with 10 hp more. |
| General information |
|---|

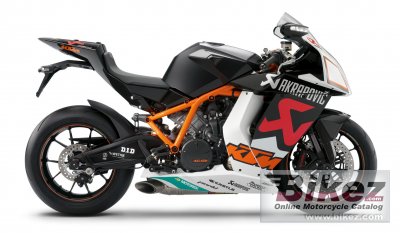

| Model: | KTM 1190 RC8 R Akrapovic |
| Year: | 2011 |
| Category: | Sport |
| Rating: | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 1195.0 ccm (72.92 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | V 75° |
| Power: | 167.6 HP (122.4 kW)) @ 10250 RPM |
| Torque: | 123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
| Compression: | 13.5:1 |
| Bore x stroke: | 105.0 x 69.0 mm (4.1 x 2.7 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Wet mDouble disk clutch, operated hydraulically |
| Driveline: | 17:37. Primary drive: 40:76. |
| Exhaust system: | Stainless steel underfloor silencer with regulated catalytic converter |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. |
| Rake (fork angle): | 23.3° |
| Trail: | 97 mm (3.8 inches) |
| Front suspension: | WP-USD 43 mm |
| Front wheel travel: | 140 mm (5.5 inches) |
| Rear suspension: | WP-Monoshock |
| Rear wheel travel: | 140 mm (5.5 inches) |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 190/55-ZR17 |
| Front brakes: | Double disc. Brembo four piston, radially bolted caliper |
| Diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Brembo two piston, fixed caliper |
| Diameter: | 220 mm (8.7 inches) |
| Wheels: | Cast aluminium wheels 3.5 x 17in., 6 x 17in. |
| Physical measures and capacities |
|---|
| Dry weight: | 182.0 kg (401.2 pounds) |
| Power/weight ratio: | 0.9210 HP/kg |
| Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Ground clearance: | 110 mm (4.3 inches) |
| Wheelbase: | 1425 mm (56.1 inches) |
| Fuel capacity: | 16.50 litres (4.36 gallons) |
| Other specifications |
|---|
| Color options: | Black/orange/white |
| Starter: | Electric |
| Comments: | Limited edition model. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 11 KTM 1190 RC8 R Akrapovic discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM bike
|
Offroad capabilities for the 2011 KTM 1190 RC8 R Akrapovic:
 (64.4 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
