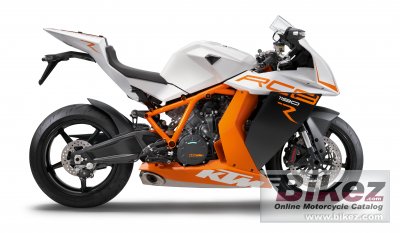

KTM 1190 RC8 R 20132013 KTM 1190 RC8 R specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The ultimate power tool from KTM. KTM designers pulled out all the stops in the art of engine building when it came to the 1190 RC8 R. The rider has one of the most powerful V2 engines of our times and one of the best chassis in the world at his or her disposal - totally street-legal. |
| General information | |
|---|---|
| Motorcycle name | KTM 1190 RC8 R |
| Year model | 2013 |
| Type | Sport |
| Rating | 3.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1195.0 ccm (72.92 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 173.0 HP (126.3 kW)) |
| Bore x stroke | 105.0 x 69.0 mm (4.1 x 2.7 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Dry-sump lubrication with 3 rotor pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 5/8 x 5/16 X Ring. Primary drive: 40:76. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Rake (fork angle) | 23.3° |
| Front suspension | WP Suspension Up Side Down 4354 |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | WP Suspension 4014 VP |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front brakes | Double disc. Floating disc. Four-piston calipers. Radially mounted. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 186.0 kg (410.1 pounds) |
| Power/weight ratio | 0.9301 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Ground clearance | 110 mm (4.3 inches) |
| Wheelbase | 1425 mm (56.1 inches) |
| Fuel capacity | 16.50 litres (4.36 US gallons) |
| Other specifications | |
| Color options | White/orange, black/orange |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
