| KTM's profilation of this bike |
| The ultimate power tool from KTM. KTM designers pulled out all the stops in the art of engine building when it came to the 1190 RC8 R. The rider has one of the most powerful V2 engines of our times and one of the best chassis in the world at his or her disposal - totally street-legal. |
|
General information |
|
Motorcycle name
|

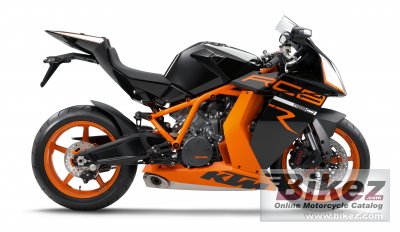

KTM 1190 RC8 R |
|
Year model
|
2012 |
|
Type
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1195.0 ccm (72.92 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
V 75° |
|
Effect
|
173.0 HP (126.3 kW)) @ 4000 RPM |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
|
Compression
|
13.5:1 |
|
Bore x stroke
|
105.0 x 69.0 mm (4.1 x 2.7 inches) |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Dry-sump lubrication with 3 rotor pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
17:37. Primary drive: 40:76. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame made from chrome molybdenum steel, powder-coated |
|
Rake (fork angle)
|
23.3° |
|
Trail
|
97 mm (3.8 inches) |
|
Front suspension
|
WP Suspension Up Side Down 4354 |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
WP Suspension 4014 VP |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
190/55-17 |
|
Front brakes
|
Double disc. Radially mounted four-piston brake calipers; floating brake discs. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Two-piston brake caliper; fixed brake disc. |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
186.0 kg (410.1 pounds) |
|
Power/weight ratio
|
0.9301 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1425 mm (56.1 inches) |
|
Fuel capacity
|
16.50 litres (4.36 US gallons) |
|
Other specifications |
|
Color options
|
White/orange |
|
Starter
|
Electric |
