| KTM's profilation of this bike |
| A winner on the start line. Fastest through the bends. The king of all the tracks. You and your RC8 R. Always focused on the coming trip. The line? Burnt into your memory. Bend by bend. Straight by straight. Nothing to distract you. Here we go! Each and every day. |
|
General information |
|
Model name
|

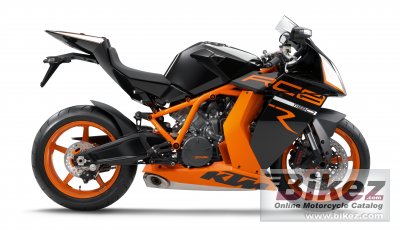

KTM 1190 RC8 R |
|
Year of manufacture
|
2011 |
|
Type
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1195.0 ccm (72.92 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
V 75° |
|
Output
|
167.6 HP (122.4 kW)) @ 10250 RPM |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
|
Compression
|
13.5:1 |
|
Bore x stroke
|
105.0 x 69.0 mm (4.1 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressure lubrication with 3 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Driveline
|
17:37. Primary drive: 40:76. |
|
Exhaust system
|
Stainless steel underfloor silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. |
|
Rake (fork angle)
|
23.3° |
|
Trail
|
97 mm (3.8 inches) |
|
Front suspension
|
WP-USD 43 mm |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
WP-Monoshock |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
190/55-17 |
|
Front brakes
|
Double disc. Brembo four piston, radially bolted caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo two piston, fixed caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Cast aluminium wheels 3.5 x 17in., 6 x 17in. |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Power/weight ratio
|
0.9210 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1425 mm (56.1 inches) |
|
Fuel capacity
|
16.50 litres (4.36 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange/white |
