General information |
|
Model
|

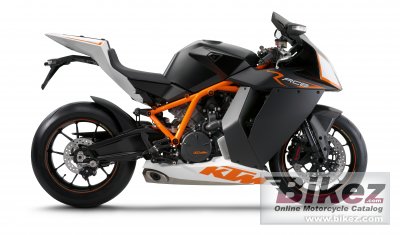

KTM 1190 RC8 R |
|
Year model
|
2009 |
|
Type
|
Sport |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1195.0 ccm (72.92 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
167.6 HP (122.4 kW)) @ 10250 RPM |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
105.0 x 69.0 mm (4.1 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI (throttle body 52 mm) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump, pressure lubrication with 3 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Exhaust system
|
Stainless steel underfloor silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder-coated. Aluminium subframe. |
|
Rake (fork angle)
|
23.3° |
|
Trail
|
97 mm (3.8 inches) |
|
Front suspension
|
WP-USD, 43 mm |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
WP-Monoshock |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Brem |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Power/weight ratio
|
0.9210 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
825 mm (32.5 inches) If adjustable, highest setting. |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
16.50 litres (4.36 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange |
|
Starter
|
Electric |
