General information |
|
Motorcycle name
|

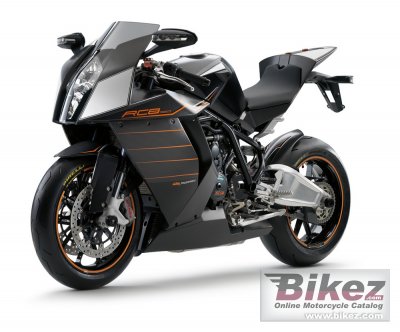

KTM 1190 RC8 Carbon |
|
Year model
|
2009 |
|
Type
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1148.0 ccm (70.05 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
151.5 HP (110.6 kW)) @ 10000 RPM |
|
Torque
|
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8000 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
103.0 x 69.0 mm (4.1 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump, pressure lubrication with 3 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
23.3° |
|
Trail
|
90 mm (3.5 inches) |
|
Front suspension
|
WP-USD |
|
Rear suspension
|
WP-Monoshock |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
825 mm (32.5 inches) If adjustable, highest setting. |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
16.50 litres (4.36 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 KTM 1190 RC8 Carbon discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM bike
|
Racing track capabilities for the 2009 KTM 1190 RC8 Carbon:
 (82.3 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
