| KTM's profilation of this bike |
| Sharper and lighter than anything that calls itself competition: 120 Nm torque, 155 HP at 10,000 rpm and withs less than 200 kilos fully tanked. Nonetheless, thanks to innovative solutions and meticulous detail work, we´ve achieved unsurpassed rideability - on the street and on the racetrack, in every situation - of life or riding. |
|
General information |
|
Motorcycle name
|

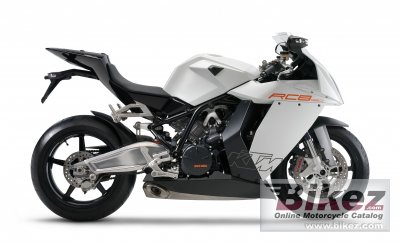

KTM 1190 RC8 |
|
Model year
|
2009 |
|
Category
|
Sport |
|
Rating
|
3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1148.0 ccm (70.05 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
151.5 HP (110.6 kW)) @ 10000 RPM |
|
Torque
|
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8000 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
103.0 x 69.0 mm (4.1 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI (throttle body 52 mm) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump, pressure lubrication with 3 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Stainless steel underfloor silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder-coated. Aluminium 7020 subframe. |
|
Rake (fork angle)
|
23.3° |
|
Trail
|
90 mm (3.5 inches) |
|
Front suspension
|
WP-USD, 43 mm |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
WP-Monoshock |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
188.0 kg (414.5 pounds) |
|
Power/weight ratio
|
0.8060 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
825 mm (32.5 inches) If adjustable, highest setting. |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
16.50 litres (4.36 US gallons) |
|
Other specifications |
|
Color options
|
Orange, white, black |
|
Starter
|
Electric |
