2013 KTM 1190 Adventure R

KTM 1190 Adventure R 2013


2013 KTM 1190 Adventure R specifications, pictures, reviews and rating

2013 KTM 1190 Adventure R

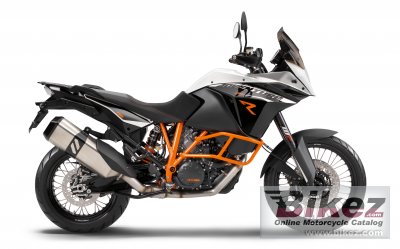

2013 KTM 1190 Adventure R. Picture credits - KTM. Submit more pictures.

   Show big 2013 KTM 1190 Adventure R picture More 2013 KTM 1190 Adventure R images
2013 KTM 1190 Adventure R
More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
Tip a friend
List related bikes


KTM's profilation of this bike
Based on the original Adventure concept, the ultimate 1190 Adventure has now been produced in Mattighofen. Concealed behind the additional ´R´ is the soul of the original KTM Adventure - puristic, raw, sportily challenging for rider and machine. With a chassis adapted in every aspect to this requirements profile as well as tailor-made and specifically tuned assistance systems, the Adventure R is aimed at all those who take the term ´adventure´ even more literally.

General information
ModelKTM 1190 Adventure R
Year2013
CategoryAllround
Rating 3.8  Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle.
Engine and transmission
Displacement1195.0 ccm (72.92 cubic inches)
Engine typeTwin, four-stroke
Power147.5 HP (107.7 kW))
Bore x stroke105.0 x 69.0 mm (4.1 x 2.7 inches)
Fuel systemInjection
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication systemForced oil lubrication with 3 rotor pumps
Cooling systemLiquid
Gearbox6-speed
Transmission typeChain   (final drive)
ClutchPASC anti-hopping clutch/ hydraulically operated
Driveline5/8  x  5/16  X Ring. Primary drive: 40:76.
Chassis, suspension, brakes and wheels
Frame typeTubular space frame made from chrome molybdenum steel, powder-coated
Rake (fork angle)26.0°
Front suspensionWP  Suspension Up Side Down
Front wheel travel190 mm (7.5 inches)
Rear suspensionWP  Suspension monoshock
Rear wheel travel190 mm (7.5 inches)
Front brakesDouble disc. Four-piston calipers. Radially mounted.
Diameter320 mm (12.6 inches)
Rear brakesSingle disc. Two-piston calipers.
Diameter267 mm (10.5 inches)
Physical measures and capacities
Dry weight217.0 kg (478.4 pounds)
Power/weight ratio0.6798 HP/kg
Seat height890 mm (35.0 inches) If adjustable, lowest setting.
Ground clearance250 mm (9.8 inches)
Wheelbase1580 mm (62.2 inches)
Fuel capacity23.00 litres (6.08 US gallons)
Other specifications
Color optionsBlack/orange
StarterElectric
Update specsReport missing specs or required updates.
Further information
Insurance costsCompare US insurance quotes from the nation's top providers.
Parts finder Check out our overview of motorcycle webshops at Bikez.info.
MaintenanceFind parts, fluids. filters, maintenance tools and service manuals at Amazon.com.
Ask questionsJoin the 13 KTM 1190 Adventure R discussion group or the general KTM discussion group.
Related bikesList related bikes for comparison of specs.

Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities. The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 1190 Adventure R and compare it to other bikes here.


Rating sample for this KTM bike
Reliability for the 2013 KTM 1190 Adventure R:

Vote scale
bar (67.5 out of 100)

Click here for complete rating. You can also compare bikes.
