KTM 105 SX 2004

2004 KTM 105 SX specifications, pictures, reviews and rating

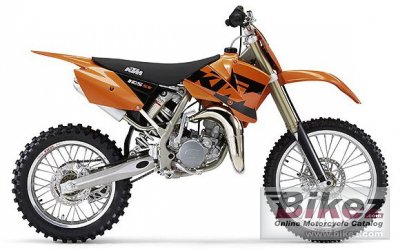

Picture credits - KTM. Click to submit more pictures.

2004 KTM 105 SX

Discuss this bike
Rate this motorbike
This bike's rating
2 reviews available
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	KTM 105 SX
Year:	2004
Category:	Minibike, sport
Rating:	75.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	84.93 ccm (5.18 cubic inches)
Engine type:	Single cylinder, two-stroke
Bore x stroke:	47.0 x 49.0 mm (1.9 x 1.9 inches)
Fuel system:	Carburettor
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Frame type:	Chromium molybdenum central-type frame
Rake (fork angle):	24.0°
Front suspension:	WP USD 43
Rear suspension:	WP PDS monoshock
Front brakes:	Single disc
Front brakes diameter:	216 mm (8.5 inches)
Rear brakes:	Single disc
Rear brakes diameter:	216 mm (8.5 inches)
Physical measures and capacities
Dry weight:	68.0 kg (149.9 pounds)
Seat height:	900 mm (35.4 inches) If adjustable, lowest setting.
Alternate seat height:	675 mm (26.6 inches) If adjustable, highest setting.
Ground clearance:	430 mm (16.9 inches)
Wheelbase:	1,278 mm (50.3 inches)
Fuel capacity:	5.00 litres (1.32 gallons)
Other specifications
Comments:	Sold in the US only.
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 04 KTM 105 SX discussion group or the general KTM discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.

General information

Model:

KTM 105 SX

Year:

2004

Category:

Minibike, sport

Rating:

75.3 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

84.93 ccm (5.18 cubic inches)

Engine type:

Single cylinder, two-stroke

Bore x stroke:

47.0 x 49.0 mm (1.9 x 1.9 inches)

Fuel system:

Carburettor

Cooling system:

Liquid

Gearbox:

6-speed

Transmission type,
final drive:

Chain

Chassis, suspension, brakes and wheels

Frame type:

Chromium molybdenum central-type frame

Rake (fork angle):

24.0°

Front suspension:

WP USD 43

Rear suspension:

WP PDS monoshock

Front brakes:

Single disc

Front brakes diameter:

216 mm (8.5 inches)

Rear brakes:

Single disc

Rear brakes diameter:

216 mm (8.5 inches)

Physical measures and capacities

Dry weight:

68.0 kg (149.9 pounds)

Seat height:

900 mm (35.4 inches) If adjustable, lowest setting.

Alternate seat height:

675 mm (26.6 inches) If adjustable, highest setting.

Ground clearance:

430 mm (16.9 inches)

Wheelbase:

1,278 mm (50.3 inches)

Fuel capacity:

5.00 litres (1.32 gallons)

Other specifications

Comments:

Sold in the US only.

Further information

Insurance costs

Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.

Parts finder

Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.

Ask questions

Join the 04 KTM 105 SX discussion group or the general KTM discussion group.

Loans, tests, etc

Search the web for dealers, loan costs, tests, customizing, etc.

Related bikes

List related bikes for comparison of specs.
