| Kreidler's profilation of this bike |
| The Mustang 50 is the smallest quad bike in the Kreidler portfolio. The quick-starting 50ccm motor with the Vario drive stepless transmission cuts a great figure both on the street or on gentle terrain. |
| General moped information |
|---|

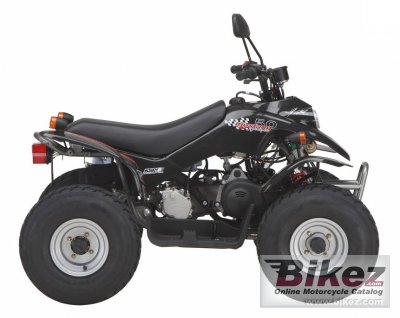

| Model: | Kreidler Mustang 50 DD |
| Year: | 2011 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 5.00 HP (3.6 kW)) @ 6800 RPM |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Driveline: | CVT with rear gear |
| Emission details: | Euro 2 |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Rear suspension: | Hydraulic shock absorbers (adjustable) |
| Front tyre: | 19/7-8 |
| Rear tyre: | 19/7-8 |
| Front brakes: | Expanding brake (drum brake) |
| Front brakes diameter: | 80 mm (3.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 80 mm (3.1 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 104.0 kg (229.3 pounds) |
| Seat height: | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall length: | 1,400 mm (55.1 inches) |
| Overall width: | 960 mm (37.8 inches) |
| Wheelbase: | 960 mm (37.8 inches) |
| Fuel capacity: | 5.60 litres (1.48 gallons) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Electric & kick |
| Comments: | With reverse. German brand. |
