| Kreidler's profilation of this bike |

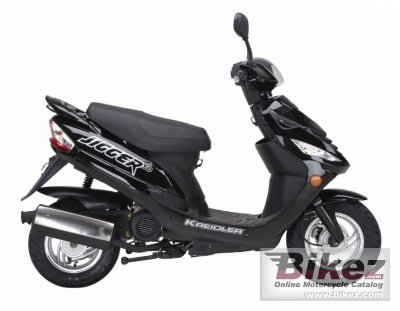

| The Jigger 50 is the compact and budget-priced starter product in the Kreidler small moped portfolio. The light and quick Jigger 50 comes along on 10-inch wheels and is powered by a zippy, 2-stroke engine. |
|
General moped information |
|
Motorcycle name
|
Kreidler Jigger 50 |
|
Year
|
2011 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
3.8 HP (2.7 kW)) @ 6300 RPM |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Exhaust system
|
Euro 2 |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Hydraulic shock absorbers (adjustable) |
|
Front tire
|
3.50-10 |
|
Rear tire
|
3.50-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
155 mm (6.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Wheels
|
Painted rims |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
87.0 kg (191.8 pounds) |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1060 mm (41.7 inches) |
|
Overall length
|
1645 mm (64.8 inches) |
|
Overall width
|
680 mm (26.8 inches) |
|
Wheelbase
|
1240 mm (48.8 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
|
Carrying capacity
|
Helmet box, luggage carrier |
|
Comments
|
Also available in throttled (25km/h [in Germany/Netherlands] and 30 km/h [in Denmark] ) moped version. |
