| General information |
|---|

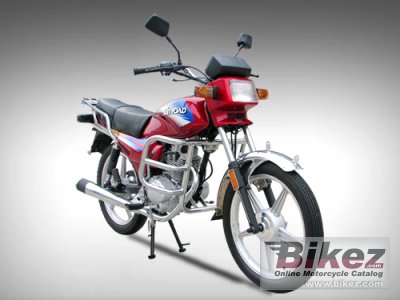

| Model: | Kinroad XT125-B Mickey |
| Year: | 2010 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.10 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 7.00 HP (5.1 kW)) @ 8000 RPM |
| Torque: | 8.20 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 7500 RPM |
| Top speed: | 75.0 km/h (46.6 mph) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Manual |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Hydraulic damper |
| Rear suspension: | Doule spring |
| Front tyre: | 2.75-18 |
| Rear tyre: | 3.00-18 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Seat height: | 720 mm (28.3 inches) If adjustable, lowest setting. |
| Overall height: | 860 mm (33.9 inches) |
| Overall length: | 1,760 mm (69.3 inches) |
| Overall width: | 460 mm (18.1 inches) |
| Ground clearance: | 150 mm (5.9 inches) |
| Wheelbase: | 1,310 mm (51.6 inches) |
| Other specifications |
|---|
| Color options: | Red, black |
| Starter: | Electric & kick |
| Comments: | Optional 150 ccm engine. |
