| Keeway's profilation of this bike |
| This is a large quad that offers an innovative design and high-quality fit and finish. |
|
General information |
|
Motorcycle name
|

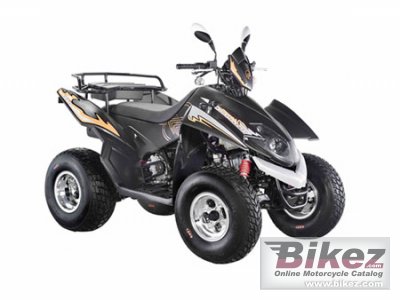

Keeway ATV Dragon 250 |
|
Year
|
2009 |
|
Category
|
ATV |
|
Rating
|
2.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
249.7 ccm (15.24 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
11.8 HP (8.6 kW)) @ 6200 RPM |
|
Torque
|
11.0 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 4800 RPM |
|
Top speed
|
80.0 km/h (49.7 mph) |
|
Compression
|
9.1:1 |
|
Bore x stroke
|
69.0 x 66.8 mm (2.7 x 2.6 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
3.20 litres/100 km (31.3 km/l or 73.51 mpg) |
|
Greenhouse gases
|
74.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
22/7-10 |
|
Rear tire
|
22/10-10 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
221.0 kg (487.2 pounds) |
|
Power/weight ratio
|
0.0534 HP/kg |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
1970 mm (77.6 inches) |
|
Overall width
|
1100 mm (43.3 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1300 mm (51.2 inches) |
|
Fuel capacity
|
9.30 litres (2.46 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
