General information |
|
Model name
|

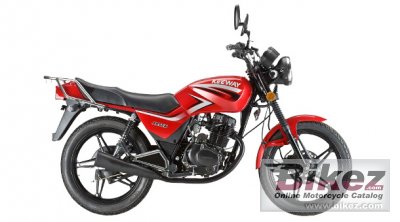

Keeway Arsen 125 |
|
Year model
|
2013 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.1 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
10.1 HP (7.3 kW)) @ 8500 RPM |
|
Torque
|
8.5 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 7500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure splash lubrication |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Bassinet type |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Telescopic coil spring oil damped |
|
Rear wheel travel
|
80 mm (3.1 inches) |
|
Front tire
|
2.75-18 |
|
Rear tire
|
3.00-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
115.0 kg (253.5 pounds) |
|
Power/weight ratio
|
0.0875 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
1955 mm (77.0 inches) |
|
Overall width
|
710 mm (28.0 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric & kick |
