General information |
Motorcycle name
|

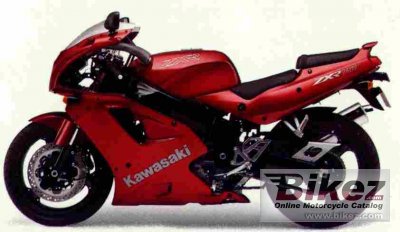

Kawasaki ZXR 750 |
Model year
|
1992 |
Category
|
Sport |
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
749.0 ccm (45.70 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power output
|
121.0 HP (88.3 kW)) @ 10500 RPM |
Top speed
|
241.0 km/h (149.8 mph) |
Compression
|
10.8:1 |
Bore x stroke
|
71.0 x 47.3 mm (2.8 x 1.9 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. 4 x 38 mm Keihin CVKD, ram air |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Digital |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multi plate wet hydraulic slipper clutch |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminium perimeter |
Rake (fork angle)
|
24.5° |
Trail
|
95 mm (3.7 inches) |
Front suspension
|
43mm Upside-down forks, adjustable ride height, 13-way rebound |
Front wheel travel
|
120 mm (4.7 inches) |
Rear suspension
|
Uni Track monoshock. adjustable |
Rear wheel travel
|
120 mm (4.7 inches) |
Front tire
|
120/70-17 |
Rear tire
|
180/55-17 |
Front brakes
|
Double disc. Four-piston calipers. |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc. Two-piston calipers. |
Diameter
|
230 mm (9.1 inches) |
Physical measures and capacities |
Dry weight
|
225.0 kg (496.0 pounds) |
Weight incl. oil, gas, etc
|
231.0 kg (509.3 pounds) |
Power/weight ratio
|
0.5378 HP/kg |
Wheelbase
|
1420 mm (55.9 inches) |
Fuel capacity
|
18.00 litres (4.76 US gallons) |
Oil capacity
|
3.50 litres (3.7 US quarts) |
Other specifications |
Color options
|
Red, blue, green |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
K-tech 10W-40 |
Oil filter
|
K & N KN-204-1 |
Brake fluid
|
DOT 4 |
Coolant
|
3.00 litres (0.79 US gallons) |
Battery
|
YTX12-BS |
Spark plugs
|
NGK, CR9E |
Idle speed
|
1000 +/- 50 RPM |
Chain size
|
530 |
Chain links
|
110 |
Sprockets
|
16/45 (front/rear) |
Tire pressure front
|
32 PSI (2.2 Bar or 220 kPa) |
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
Fork tube size
|
43 mm (1.7 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
