Kawasaki's profilation of this bike |

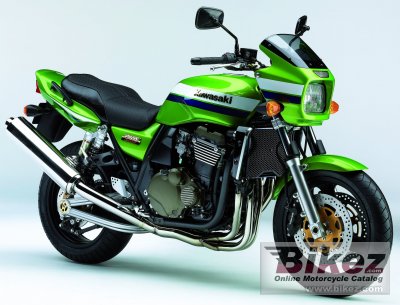

As the “muscle car” of the motorcycle world, the Kawasaki ZRX1200 has the good looks of yester-year’s Japanese standards. Combined with a relatively upright seating position, the torque of a big-bore engine and sturdy chassis, just looking at its inviting contours makes even the most casual observer want to ride. |
General information |
Model name
|
Kawasaki ZRX 1200 R |
Year model
|
2005 |
Type
|
Naked bike |
Price as new | US$ 7999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
1160.0 ccm (70.78 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Compression
|
10.1:1 |
Bore x stroke
|
79.0 x 59.4 mm (3.1 x 2.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Keihin CVK36 x 4 |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Digital with Kawasaki Throttle Responsive Ignition Control (K-TRIC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
Double-cradle tubular steel |
Rake (fork angle)
|
25.0° |
Front suspension
|
43mm cartridge-type fork with preload adjustment and 12-way adjustable compression and rebound damping |
Rear suspension
|
Braced swingarm with twin shocks, five-way adjustable preload and four-way adjustable compression and rebound damping |
Front tire
|
120/70-17 |
Rear tire
|
180/55-x17 |
Front brakes
|
Double disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
250 mm (9.8 inches) |
Physical measures and capacities |
Dry weight
|
223.2 kg (492.0 pounds) |
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
Overall height
|
1151 mm (45.3 inches) |
Overall width
|
780 mm (30.7 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Wheelbase
|
1466 mm (57.7 inches) |
Fuel capacity
|
20.06 litres (5.30 US gallons) |
Other specifications |
Color options
|
Candy Lime Green |
Starter
|
Electric |
