General information |
Motorcycle name
|

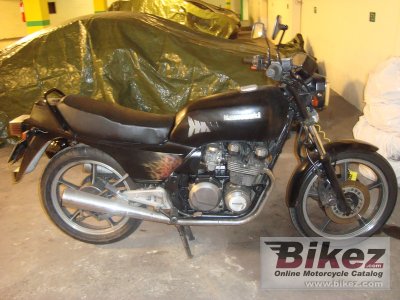

Kawasaki Z 550 F |
Year
|
1985 |
Category
|
Touring |
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Displacement
|
553.0 ccm (33.74 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power
|
56.0 HP (40.9 kW)) @ 9000 RPM |
Torque
|
48.0 Nm (4.9 kgf-m or 35.4 ft.lbs) @ 7500 RPM |
Max RPM
|
10000 |
Compression
|
9.5:1 |
Bore x stroke
|
58.0 x 52.4 mm (2.3 x 2.1 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. TK K26V |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Transistor |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet plate |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.0° |
Trail
|
105 mm (4.1 inches) |
Front brakes
|
Double disc |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
184.0 kg (405.7 pounds) |
Power/weight ratio
|
0.3043 HP/kg |
Overall height
|
1105 mm (43.5 inches) |
Overall length
|
2235 mm (88.0 inches) |
Overall width
|
750 mm (29.5 inches) |
Ground clearance
|
160 mm (6.3 inches) |
Wheelbase
|
1450 mm (57.1 inches) |
Fuel capacity
|
18.50 litres (4.89 US gallons) |
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
Other specifications |
Starter
|
Electric |
