General information |
Motorcycle name
|

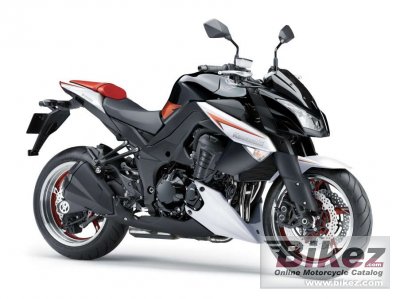

Kawasaki Z 1000 ABS Special Edition |
Year of manufacture
|
2013 |
Type
|
Naked bike |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Engine size
|
1043.0 ccm (63.64 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Compression
|
11.8:1 |
Bore x stroke
|
77.0 x 56.0 mm (3.0 x 2.2 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. DFI with four 38mm Keihin throttle bodies, oval sub-throttles |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
TCBI with Digital Advance |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminium twin-tube |
Rake (fork angle)
|
24.5° |
Trail
|
103 mm (4.1 inches) |
Front suspension
|
41 mm inverted cartridge fork with stepless compression and rebound damping, adjustable spring preload. |
Front wheel travel
|
120 mm (4.7 inches) |
Rear suspension
|
Horizontal monoshock with stepless rebound damping, adjustable spring preload. |
Rear wheel travel
|
135 mm (5.3 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
190/50-ZR17 |
Front brakes
|
Double disc. ABS. Petal-type rotors with radial-mount four-piston calipers. |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc. ABS. Petal-type rotor with single-piston caliper. |
Diameter
|
250 mm (9.8 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
222.0 kg (489.4 pounds) |
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
Overall height
|
1085 mm (42.7 inches) |
Overall length
|
2096 mm (82.5 inches) |
Overall width
|
805 mm (31.7 inches) |
Ground clearance
|
140 mm (5.5 inches) |
Wheelbase
|
1440 mm (56.7 inches) |
Fuel capacity
|
15.14 litres (4.00 US gallons) |
Other specifications |
Color options
|
Black/white/orange |
Starter
|
Electric |
Instruments
|
Fully digital instrument panel with an orange lens |
