General information |
|
Model
|

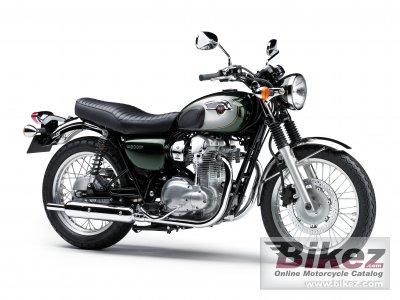

Kawasaki W800 |
|
Year of manufacture
|
2011 |
|
Type
|
Classic |
|
Rating
|
4.1 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
773.0 ccm (47.17 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) |
|
Compression
|
8.4:1 |
|
Bore x stroke
|
77.0 x 83.0 mm (3.0 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Fuel injection: Ø 34 mm x 2 with sub-throttles |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Forced lubrication, semi-dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk, manual |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, high-tensile steel |
|
Rake (fork angle)
|
37.0° |
|
Trail
|
108 mm (4.3 inches) |
|
Front suspension
|
39 mm telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Twin shocks with 5-way adjustable preload (Adjustable ride height) |
|
Rear wheel travel
|
105 mm (4.1 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/80-18 |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
160 mm (6.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
216.0 kg (476.2 pounds) |
|
Weight incl. oil, gas, etc
|
216.0 kg (476.2 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1075 mm (42.3 inches) |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1465 mm (57.7 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Oil capacity
|
2.90 litres (3.06 US quarts) |
|
Other specifications |
|
Color options
|
Black/silver, green |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Brake fluid
|
DOT 4 |
|
Spark plugs
|
NGK CR8E, NGK CR8EIX |
|
Idle speed
|
1200 +/- 50 RPM |
|
Sprockets
|
15/37 (front/rear) |
|
Tire pressure front
|
29 PSI (2 Bar or 200 kPa) |
|
Tire pressure rear
|
33 PSI (2.3 Bar or 225 kPa) |
|
Fork tube size
|
39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
