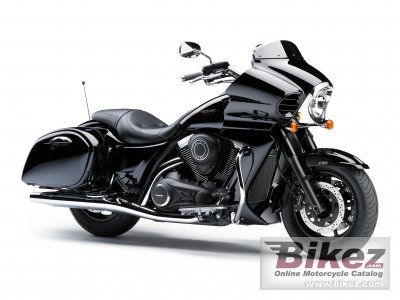

Kawasaki Vulcan VN1700 Voyager Custom 20122012 Kawasaki Vulcan VN1700 Voyager Custom specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| Instrument layout and large round dials give the console a sporty automotive appearance. This image is reinforced by red-coloured rings on the dials, amber backlighting on the dials and instrument and audio LCD screens, and by the font used on the instrumentation. |
| General information | |
|---|---|
| Model name | Kawasaki Vulcan VN1700 Voyager Custom |
| Year of manufacture | 2012 |
| Type | Sport touring |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 1700.0 ccm (103.73 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 71.1 HP (51.9 kW)) @ 5000 RPM |
| Torque | 136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 2750 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 102.0 x 104.0 mm (4.0 x 4.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Digital fuel injection, dual 42mm throttle bodies |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCBI with Digital Advance |
| Lubrication system | Forced lubrication, semi-dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, double-cradle with box-section single-tube backbone |
| Rake (fork angle) | 30.0° |
| Trail | 178 mm (7.0 inches) |
| Front suspension | 45mm hydraulic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm with twin air-assisted shocks, with 4-way rebound damping |
| Rear wheel travel | 80 mm (3.1 inches) |
| Front tire | 130/90-16 |
| Rear tire | 170/70-16 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 382.0 kg (842.2 pounds) |
| Seat height | 730 mm (28.7 inches) If adjustable, lowest setting. |
| Overall height | 1290 mm (50.8 inches) |
| Overall length | 2510 mm (98.8 inches) |
| Overall width | 970 mm (38.2 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1666 mm (65.6 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Factory warranty | 36 months |
