Kawasaki's profilation of this bike |

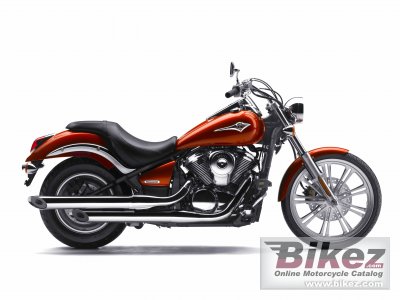

An authentic blend of cruising comfort and big bike feel, the Kawasaki Vulcan® 900 Custom is sure to turn heads with its stylish front end. This is a motorcycle that any rider would be proud to own, whether journeying through the backroads, cruising through town, or parked at the local biker hangout |
General information |
Model name
|
Kawasaki Vulcan 900 Custom |
Year of manufacture
|
2009 |
Type
|
Custom / cruiser |
Price as new | US$ 7699. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
903.0 ccm (55.10 cubic inches) |
Type of engine
|
V2, four-stroke |
Output
|
49.6 HP (36.2 kW)) |
Torque
|
78.9 Nm (8.0 kgf-m or 58.2 ft.lbs) @ 3500 RPM |
Compression
|
9.5:1 |
Bore x stroke
|
88.0 x 74.2 mm (3.5 x 2.9 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCBI with Electronic Advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Wet multi-disc, manual |
Chassis, suspension, brakes and wheels |
Frame type
|
Double-cradle, |
Rake (fork angle)
|
32.0° |
Trail
|
183 mm (7.2 inches) |
Front suspension
|
41mm hydraulic telescopic fork / 5.9 in. |
Front wheel travel
|
150 mm (5.9 inches) |
Rear suspension
|
Uni-Track® swingarm, seven-way adjustable spring preload / 4.1 in. |
Rear wheel travel
|
103 mm (4.1 inches) |
Front tire
|
80/90-21 |
Rear tire
|
180/70-15 |
Front brakes
|
Single disc |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
300 mm (11.8 inches) |
Physical measures and capacities |
Dry weight
|
277.1 kg (610.8 pounds) |
Power/weight ratio
|
0.1791 HP/kg |
Seat height
|
686 mm (27.0 inches) If adjustable, lowest setting. |
Overall height
|
1120 mm (44.1 inches) |
Overall length
|
2405 mm (94.7 inches) |
Overall width
|
894 mm (35.2 inches) |
Wheelbase
|
1646 mm (64.8 inches) |
Fuel capacity
|
20.06 litres (5.30 US gallons) |
Other specifications |
Color options
|
Metallic Midnight Sapphire Blue, Candy Burnt Orange, Special Edition Ebony, Metallic Green |
Starter
|
Electric |
