Kawasaki's profilation of this bike |

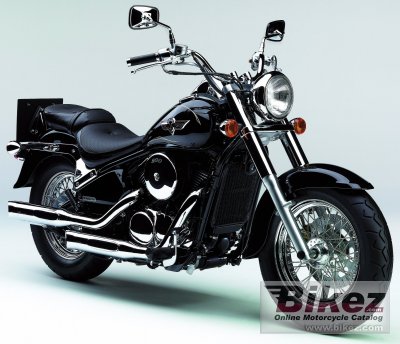

With the pulse of a 805cc V-twin engine, valanced fenders and chrome wire wheels, the Kawasaki Vulcan® 800 Classic motorcycle features the style and unlimited customizing potential of its 1500 Classic sibling. |
General information |
Model
|
Kawasaki Vulcan 800 Classic |
Year model
|
2005 |
Type
|
Custom / cruiser |
Price as new | US$ 6549. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
805.0 ccm (49.12 cubic inches) |
Type of engine
|
V2, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
88.0 x 66.2 mm (3.5 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Keihin CVK36 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
High-tensile steel, double cradle |
Rake (fork angle)
|
32.0° |
Front suspension
|
41mm hydraulic telescopic fork |
Rear suspension
|
UNI-TRAK® single shock system with seven-way preload adjustment |
Front tire
|
130/90-x16 |
Rear tire
|
140/90-x16 |
Front brakes
|
Double disc. Hydraulic |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
234.1 kg (516.0 pounds) |
Seat height
|
706 mm (27.8 inches) If adjustable, lowest setting. |
Overall height
|
1130 mm (44.5 inches) |
Overall width
|
930 mm (36.6 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Wheelbase
|
1600 mm (63.0 inches) |
Fuel capacity
|
15.14 litres (4.00 US gallons) |
Other specifications |
Color options
|
Beige, Red |
Starter
|
Electric |
