Kawasaki's profilation of this bike |

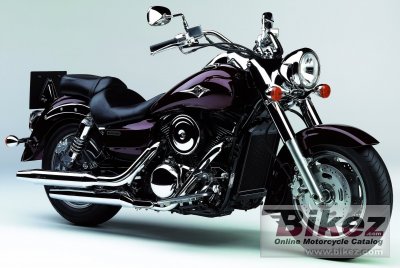

With the sleek lines of a low “stretched” chassis and muscled-out V-twin engine, the Kawasaki Vulcan® 1600 Classic cruiser makes weekend rides into the countryside too inviting to resist. |
General information |
Model
|
Kawasaki Vulcan 1600 Classic |
Year
|
2005 |
Category
|
Custom / cruiser |
Price as new | US$ 10599. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
1550.0 ccm (94.58 cubic inches) |
Engine type
|
V2, four-stroke |
Compression
|
9.0:1 |
Bore x stroke
|
102.0 x 95.0 mm (4.0 x 3.7 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Keihin CVK40 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Clutch
|
Hydraulic release |
Chassis, suspension, brakes and wheels |
Frame type
|
High-tensile steel, double cradle |
Rake (fork angle)
|
32.0° |
Front suspension
|
43mm hydraulic fork |
Rear suspension
|
Dual shocks |
Front tire
|
130/90-16 |
Rear tire
|
170/70-16 |
Front brakes
|
Double disc |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
300 mm (11.8 inches) |
Physical measures and capacities |
Dry weight
|
306.2 kg (675.0 pounds) |
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
Overall height
|
1130 mm (44.5 inches) |
Overall width
|
1039 mm (40.9 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1694 mm (66.7 inches) |
Fuel capacity
|
20.06 litres (5.30 US gallons) |
Other specifications |
Color options
|
Black, Beige, Red |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
