General information |
|
Model
|

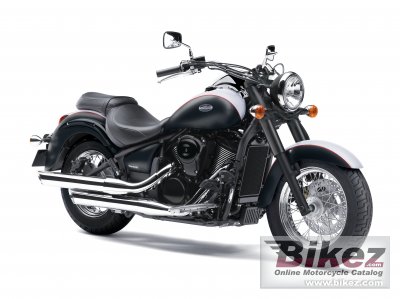

Kawasaki VN 900 Classic Special Edition |
|
Model year
|
2013 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
903.0 ccm (55.10 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
49.6 HP (36.2 kW)) @ 5700 RPM |
|
Torque
|
78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 3700 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
88.0 x 74.2 mm (3.5 x 2.9 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Forced Lubrication, wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet multi-disc, manual |
|
Exhaust system
|
Compact custom slash cut pipes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, steel |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
169 mm (6.7 inches) |
|
Front suspension
|
41 mm telescopic fork with 7-way preload |
|
Rear suspension
|
Uni-Trak |
|
Front tire
|
130/90-16 |
|
Rear tire
|
180/70-15 |
|
Front brakes
|
Single disc. Twin-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Twin-piston |
|
Diameter
|
270 mm (10.6 inches) |
|
Wheels
|
Wire-spoke wheels |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
282.0 kg (621.7 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1645 mm (64.8 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Color options
|
Ebony/white |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
