General information |
|
Model name
|

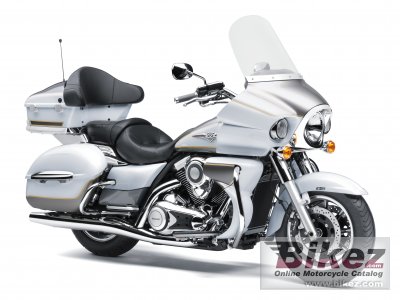

Kawasaki VN 1700 Voyager |
|
Year of manufacture
|
2013 |
|
Type
|
Touring |
|
Rating
|
3.3 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1700.0 ccm (103.73 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
72.4 HP (52.9 kW)) @ 5000 RPM |
|
Torque
|
136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 2750 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
102.0 x 104.0 mm (4.0 x 4.1 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Forced lubrication, semi-dry sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet multi-disc, manual |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, steel |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
177 mm (7.0 inches) |
|
Front suspension
|
45 mm telescopic fork |
|
Rear suspension
|
Swingarm with twin air-assisted shocks. Rebound damping: 4-way . |
|
Front tire
|
130/90-16 |
|
Rear tire
|
170/70-16 |
|
Front brakes
|
Double disc. Dual 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Twin-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
406.0 kg (895.1 pounds) |
|
Seat height
|
730 mm (28.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1550 mm (61.0 inches) |
|
Overall length
|
2560 mm (100.8 inches) |
|
Overall width
|
995 mm (39.2 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1665 mm (65.6 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Color options
|
White/silver |
|
Starter
|
Electric |
