General information |
|
Model name
|

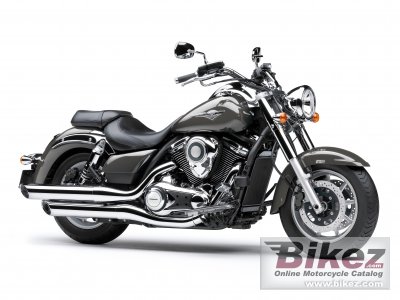

Kawasaki VN 1700 Classic |
|
Year
|
2013 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1700.0 ccm (103.73 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
73.8 HP (53.8 kW)) @ 5000 RPM |
|
Torque
|
135.0 Nm (13.8 kgf-m or 99.6 ft.lbs) @ 2750 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
102.0 x 104.0 mm (4.0 x 4.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Forced lubrication, semi-dry sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet multi-disc, manual |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, steel |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
169 mm (6.7 inches) |
|
Front suspension
|
43 mm telescopic fork |
|
Rear suspension
|
Swingarm with twin air-assisted shocks Rebound damping |
|
Front tire
|
130/90-B16 |
|
Rear tire
|
170/70-B16 |
|
Front brakes
|
Double disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
349.0 kg (769.4 pounds) |
|
Seat height
|
720 mm (28.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1155 mm (45.5 inches) |
|
Overall length
|
2500 mm (98.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1665 mm (65.6 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Carrying capacity
|
Saddle bags |
