Kawasaki VN750-A9 Vulcan 750 19931993 Kawasaki VN750-A9 Vulcan 750 specifications, pictures, reviews and rating |

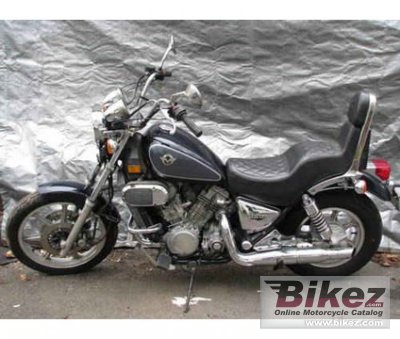

 1993 Kawasaki VN750-A9 Vulcan 750. Michelle Simkins MetalMish. Submit more pictures.
|
| General information | |
|---|---|
| Model: | Kawasaki VN750-A9 Vulcan 750 |
| Year: | 1993 |
| Category: | Custom / cruiser |
| Rating: | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement: | 749.0 ccm (45.70 cubic inches) |
| Engine type: | V2, four-stroke |
| Compression: | 10.3:1 |
| Bore x stroke: | 84.9 x 66.2 mm (3.3 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Keihin CVK34 x 2 |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Transistorized |
| Lubrication system: | Forced Lubrication (Wet Sump) |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
| Transmission type, final drive: | Shaft drive (cardan) |
| Clutch: | Wet Multi Disc |
| Exhaust system: | Double |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle): | 32.0° |
| Trail: | 127 mm (5.0 inches) |
| Front tyre: | 100/90-19 |
| Rear tyre: | 150/90-15 |
| Front brakes: | Double disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight: | 219.0 kg (482.8 pounds) |
| Overall height: | 1225 mm (48.2 inches) |
| Overall length: | 2295 mm (90.4 inches) |
| Overall width: | 850 mm (33.5 inches) |
| Ground clearance: | 150 mm (5.9 inches) |
| Wheelbase: | 1580 mm (62.2 inches) |
| Fuel capacity: | 13.50 litres (3.57 gallons) |
| Oil capacity: | 4.00 litres (0.26 quarts) |
| Other specifications | |
| Starter: | Electric |
