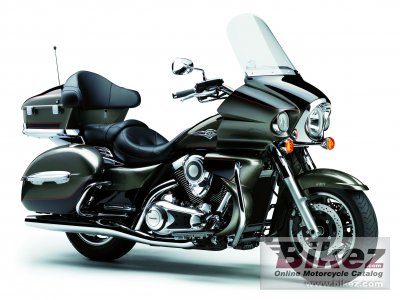

Kawasaki VN1700 Voyager 20122012 Kawasaki VN1700 Voyager specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| The most complete metric full dress V-twin tourer available, the highly specified VN1700 Voyager is the perfect place to realise your long distance motorcycling ambitions. |
| General information | |
|---|---|
| Motorcycle name | Kawasaki VN1700 Voyager |
| Year of manufacture | 2012 |
| Type | Touring |
| Rating | 3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1700.0 ccm (103.73 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 72.4 HP (52.9 kW)) @ 5000 RPM |
| Torque | 136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 2750 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 102.0 x 104.0 mm (4.0 x 4.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital |
| Lubrication system | Forced lubrication, semi-dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet multidisk, manual |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double-cradle, steel |
| Rake (fork angle) | 30.0° |
| Trail | 177 mm (7.0 inches) |
| Front suspension | 45 mm telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm with twin air-assisted shocks |
| Rear wheel travel | 80 mm (3.1 inches) |
| Front tire | 130/90-B16 |
| Rear tire | 170/70-B16 |
| Front brakes | Double disc. Anti-lock braking (ABS). Dual 4-piston. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Twin-piston |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Instruments | Multi-function LCD display in the centre of analog instrument console |
| Carrying capacity | 50 litre lockable topbox. Top-opening panniers. Glove box. |
| Comments | Windscreen |
