General information |
|
Model
|

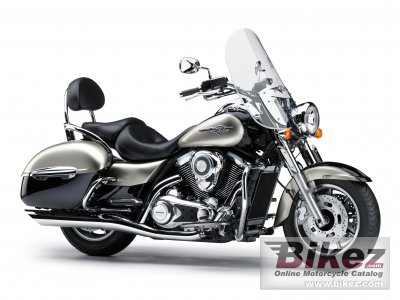

Kawasaki VN1700 Classic Tourer |
|
Year model
|
2010 |
|
Type
|
Touring |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1700.0 ccm (103.73 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 2750 RPM |
|
Bore x stroke
|
102.0 x 104.0 mm (4.0 x 4.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Digital fuel injection, dual 42mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Forced lubrication, semi-dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, steel |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
169 mm (6.7 inches) |
|
Front suspension
|
43mm hydraulic fork / 5.5 in. |
|
Rear suspension
|
Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in. |
|
Front tire
|
130/90-B16 |
|
Rear tire
|
170/70-B16 |
|
Front brakes
|
Double disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
382.0 kg (842.2 pounds) |
|
Seat height
|
721 mm (28.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1466 mm (57.7 inches) |
|
Overall length
|
2499 mm (98.4 inches) |
|
Overall width
|
1025 mm (40.4 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1666 mm (65.6 inches) |
|
Fuel capacity
|
20.06 litres (5.30 US gallons) |
|
Other specifications |
|
Color options
|
Black/titanium |
|
Starter
|
Electric |
