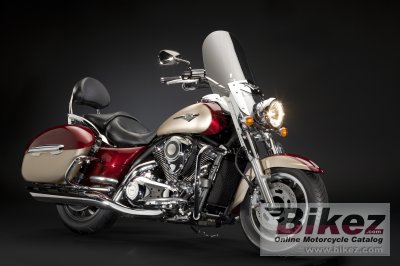

Kawasaki VN1700 Classic Tourer 20092009 Kawasaki VN1700 Classic Tourer specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| Cruise control, large windscreen, hard panniers, passenger floorboards and luxury backrest enable comfortable two-up touring. Ideal for overnight tours with a passenger. |
| General information | |
|---|---|
| Model name | Kawasaki VN1700 Classic Tourer |
| Model year | 2009 |
| Category | Touring |
| Rating | 3.2 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1700.0 ccm (103.73 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 2750 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 102.0 x 104.0 mm (4.0 x 4.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Digital fuel injection, dual 42mm throttle bodies |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | Forced lubrication, semi-dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double-cradle, steel |
| Rake (fork angle) | 30.0° |
| Front suspension | 43mm hydraulic fork / 5.5 in. |
| Rear suspension | Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in. |
| Front tire | 130/90-B16 |
| Rear tire | 170/70-B16 |
| Front brakes | Double disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 365.1 kg (804.8 pounds) |
| Seat height | 721 mm (28.4 inches) If adjustable, lowest setting. |
| Overall height | 1466 mm (57.7 inches) |
| Overall length | 2499 mm (98.4 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1666 mm (65.6 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications | |
| Color options | Black, red/beige |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Kawasaki VN1700 Classic Tourer discussion group or the general Kawasaki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Kawasaki VN1700 Classic Tourer discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Kawasaki bike | |
Reliability for the 2009 Kawasaki VN1700 Classic Tourer:  (72.0 out of 100)Click here for complete rating. |
|
