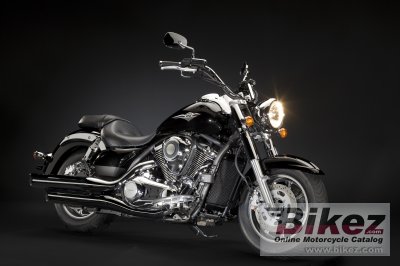

Kawasaki VN1700 Classic 20092009 Kawasaki VN1700 Classic specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| Whether looking to riding around town or to escape the city for the day, the Classic offers a great V-Twin pulse, effortless handling and timeless looks. |
| General information | |
|---|---|
| Model | Kawasaki VN1700 Classic |
| Year of manufacture | 2009 |
| Type | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1700.0 ccm (103.73 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 135.0 Nm (13.8 kgf-m or 99.6 ft.lbs) @ 2750 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 102.0 x 104.0 mm (4.0 x 4.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Digital fuel injection, dual 42mm throttle bodies |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | Forced lubrication, semi-dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multi-disc, manual |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double-cradle, steel |
| Rake (fork angle) | 30.0° |
| Front suspension | 43mm hydraulic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm with twin air-assisted shocks, with 4-way rebound damping |
| Rear wheel travel | 79 mm (3.1 inches) |
| Front tire | 130/90-16 |
| Rear tire | 170/70-16 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 345.0 kg (760.7 pounds) |
| Seat height | 721 mm (28.4 inches) If adjustable, lowest setting. |
| Overall height | 1156 mm (45.5 inches) |
| Overall length | 2499 mm (98.4 inches) |
| Overall width | 1026 mm (40.4 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1666 mm (65.6 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Kawasaki VN1700 Classic discussion group or the general Kawasaki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Kawasaki. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Kawasaki VN1700 Classic for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Kawasaki bike | |
Fun-factor for the 2009 Kawasaki VN1700 Classic:  (83.0 out of 100)Click here for complete rating. |
|
