General information |
|
Model name
|

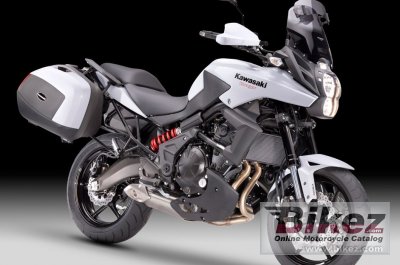

Kawasaki Versys Tourer |
|
Year model
|
2013 |
|
Type
|
Allround |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
649.0 ccm (39.60 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
83.0 x 60.0 mm (3.3 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Digital fuel injection with two 38mm Keihin throttle bodies |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCBI with electronic advance |
|
Lubrication system
|
Forced lubrication, semi-dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
O-Ring Chain |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond, high-tensile steel |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
108 mm (4.3 inches) |
|
Front suspension
|
41mm hydraulic telescopic fork with stepless adjustable rebound and preload. |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Single offset laydown shock with 13-position adjustable rebound damping and adjustable spring preload. |
|
Rear wheel travel
|
145 mm (5.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Double disc. Petal discs with two-piston caliper. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Petal disc with single-piston caliper. Optional ABS. |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
206.0 kg (454.2 pounds) |
|
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1331 mm (52.4 inches) |
|
Overall length
|
2126 mm (83.7 inches) |
|
Overall width
|
841 mm (33.1 inches) |
|
Ground clearance
|
180 mm (7.1 inches) |
|
Wheelbase
|
1415 mm (55.7 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Other specifications |
|
Color options
|
Grey, white |
|
Starter
|
Electric |
|
Carrying capacity
|
Saddle bags |
|
Factory warranty
|
12 months |
|
Comments
|
Windscreen |
