General information |
|
Model name
|

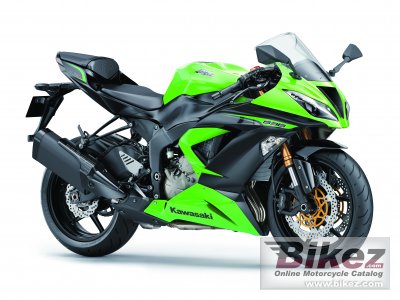

Kawasaki Ninja ZX -6R |
|
Year of manufacture
|
2013 |
|
Type
|
Sport |
| Price as new | US$ 11699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
636.0 ccm (38.81 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Compression
|
12.9:1 |
|
Bore x stroke
|
67.0 x 45.1 mm (2.6 x 1.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. DFI with four 38mm Keihin throttle bodies and oval sub-throttles |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCBI with digital advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
520 series X-ring chain |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum perimeter |
|
Rake (fork angle)
|
23.5° |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
41mm inverted Showa BP-SFF fork with top-out springs, stepless compression and rebound damping, adjustable spring preload / 4.7 in. |
|
Rear suspension
|
Bottom-link Uni-Trak with gas-charged shock, top-out spring and pillow ball upper mount, stepless compression damping, 25-way adjustable rebound damping, fully adjustable spring preload / 5.3 in. |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Petal rotors with dual radial-mount, Nissin four-piston, monobloc calipers |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Petal rotor with single-piston caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
192.1 kg (423.4 pounds) |
|
Seat height
|
831 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2085 mm (82.1 inches) |
|
Overall width
|
706 mm (27.8 inches) |
|
Wheelbase
|
1394 mm (54.9 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Color options
|
Pearl Flat Stardust White/Flat Ebony, Metallic Spark Black/Flat Ebony, Lime Green/Metallic Spark Black |
|
Starter
|
Electric |
|
Factory warranty
|
12 months |
