General information |
|
Model
|

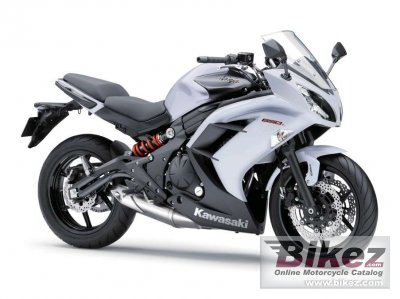

Kawasaki Ninja 650L (LAMS) ABS |
|
Year model
|
2013 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
649.0 ccm (39.60 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
83.0 x 60.0 mm (3.3 x 2.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Digital fuel injection with two 38mm Keihin throttle bodies |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCBI with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
O-Ring Chain |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Twin-pipe perimeter design, high-tensile steel |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
41mm hydraulic telescopic fork / 4.9 in. |
|
Rear suspension
|
Single offset laydown shock with adjustable spring preload / 5.1 in. |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Double disc. Petal discs and two-piston calipers. ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Petal disc and single piston caliper. ABS. |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
211.1 kg (465.3 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1181 mm (46.5 inches) |
|
Overall length
|
2111 mm (83.1 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
15.90 litres (4.20 US gallons) |
|
Other specifications |
|
Color options
|
Green, white |
|
Starter
|
Electric |
|
Instruments
|
Analogue-style tachometer and multi-function dual-window LCD screen |
|
Light
|
dual headlamp |
|
Factory warranty
|
12 months |
