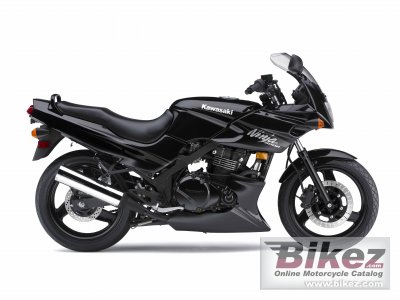

Kawasaki Ninja 500R 20092009 Kawasaki Ninja 500R specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| Practicality is the Kawasaki’s Ninja® 500R’s biggest asset as it strikes an ideal balance between function, form and budget that’s rarely achieved in the sport bike world. A sensible sportbike, the 500R is ready to rip, yet remains friendly enough for beginners to feel confident in its manners. |
| General information | |
|---|---|
| Model name | Kawasaki Ninja 500R |
| Year of manufacture | 2009 |
| Type | Sport |
| Price as new | US$ 5499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 498.0 ccm (30.39 cubic inches) |
| Type of engine | Twin, four-stroke |
| Compression | 10.8:1 |
| Bore x stroke | 74.0 x 58.0 mm (2.9 x 2.3 inches) |
| Fuel system | Carburettor. Keihin CVK34 x 2 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCBI with digital advance |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-tensile steel, perimeter design |
| Rake (fork angle) | 27.0° |
| Front suspension | 37mm hydraulic telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | UNI-TRAK® system with single shock |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 110/70-17 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 197.0 kg (434.4 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1161 mm (45.7 inches) |
| Overall length | 2096 mm (82.5 inches) |
| Overall width | 701 mm (27.6 inches) |
| Ground clearance | 119 mm (4.7 inches) |
| Wheelbase | 1435 mm (56.5 inches) |
| Fuel capacity | 18.16 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Metallic Diablo Black, Candy Plasma Blue |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Kawasaki Ninja 500R discussion group or the general Kawasaki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Kawasaki Ninja 500R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Kawasaki bike | |
Engine performance for the 2009 Kawasaki Ninja 500R:  (69.1 out of 100)Click here for complete rating. |
|
