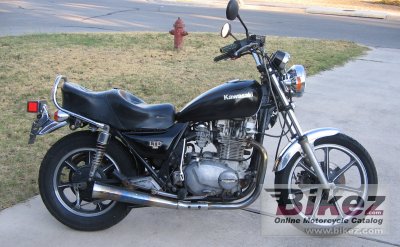

Kawasaki KZ 750 K1 LTD 19831983 Kawasaki KZ 750 K1 LTD specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Kawasaki KZ 750 K1 LTD |
| Year model | 1983 |
| Type | Custom / cruiser |
| Rating | 3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 750.0 ccm (45.77 cubic inches) |
| Type of engine | Twin, four-stroke |
| Effect | 55.0 HP (40.1 kW)) @ 7000 RPM |
| Torque | 60.9 Nm (6.2 kgf-m or 44.9 ft.lbs) @ 3000 RPM |
| Maximum RPM | 7800 |
| Compression | 8.5:1 |
| Bore x stroke | 78.0 x 78.0 mm (3.1 x 3.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 2 Mikuni BS34 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | battery and coil |
| Lubrication system | wet sump with cooler |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | wet plate |
| Fuel consumption | 4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
| Greenhouse gases | 109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | double- chromed pipes |
| Chassis, suspension, brakes and wheels | |
| Frame type | steel |
| Rake (fork angle) | 28.0° |
| Trail | 113 mm (4.4 inches) |
| Front suspension | telescopic forks-pneumatic |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | swing arm with conventional coil-over shocks |
| Rear wheel travel | 96 mm (3.8 inches) |
| Front tire | 100/90-19 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 206.0 kg (454.2 pounds) |
| Weight incl. oil, gas, etc | 210.5 kg (464.1 pounds) |
| Power/weight ratio | 0.2670 HP/kg |
| Front percentage of weight | 47.0 |
| Rear percentage of weight | 53.0 |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1215 mm (47.8 inches) |
| Overall length | 2190 mm (86.2 inches) |
| Overall width | 845 mm (33.3 inches) |
| Ground clearance | 155 mm (6.1 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 10.60 litres (2.80 US gallons) |
| Other specifications | |
| Color options | black with gold lettering and striping |
| Starter | Electric & kick |
| Comments | Light with good handling. Great torque across all RPM range. Pulls like a bigger, more powerful bike. HP is under-rated. Hang on above 6000 RPM. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 83 Kawasaki KZ 750 K1 LTD discussion group or the general Kawasaki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
