General information |
Model
|

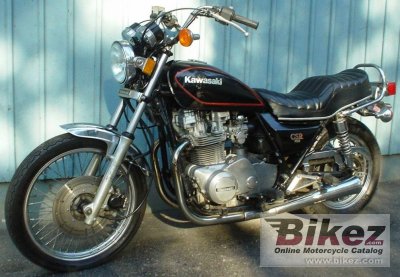

Kawasaki KZ 750 CSR (KZ 750 M1) |
Year
|
1982 |
Category
|
Custom / cruiser |
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
745.0 ccm (45.46 cubic inches) |
Engine type
|
Twin, four-stroke |
Power
|
55.0 HP (40.1 kW)) @ 7000 RPM |
Torque
|
60.8 Nm (6.2 kgf-m or 44.8 ft.lbs) @ 3000 RPM |
Bore x stroke
|
78.0 x 78.0 mm (3.1 x 3.1 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
Tubular, double cradle |
Front suspension
|
Telescopic fork (Pneumatic) |
Front wheel travel
|
180 mm (7.1 inches) |
Rear suspension
|
Swing arm |
Rear wheel travel
|
96 mm (3.8 inches) |
Front tire
|
3.25H-19 4PR |
Rear tire
|
130/90-16 67H |
Front brakes
|
Single disc |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
205.0 kg (451.9 pounds) |
Power/weight ratio
|
0.2683 HP/kg |
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
Overall height
|
1215 mm (47.8 inches) |
Overall length
|
2190 mm (86.2 inches) |
Overall width
|
840 mm (33.1 inches) |
Ground clearance
|
170 mm (6.7 inches) |
Wheelbase
|
1475 mm (58.1 inches) |
Fuel capacity
|
10.60 litres (2.80 US gallons) |
Other specifications |
