General information |
|
Motorcycle name
|

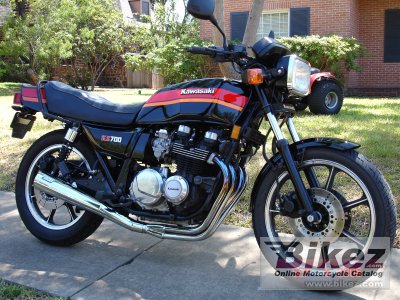

Kawasaki KZ 700-A1 |
|
Year of manufacture
|
1984 |
|
Type
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
694.0 ccm (42.35 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
64.0 x 54.0 mm (2.5 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni BS34 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Transistorized ignition |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet plate |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
107 mm (4.2 inches) |
|
Front suspension
|
Air-adjustable telescopic fork |
|
Rear suspension
|
Dual shocks with adjustable preload and damping |
|
Front tire
|
100/90-19-57H |
|
Rear tire
|
120/90-18-65H |
|
Front brakes
|
Double disc. 1-piston calipers |
|
Rear brakes
|
Single disc. 1-piston caliper |
|
Physical measures and capacities |
|
Dry weight
|
216.0 kg (476.2 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2170 mm (85.4 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1460 mm (57.5 inches) |
|
Fuel capacity
|
21.70 litres (5.73 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
